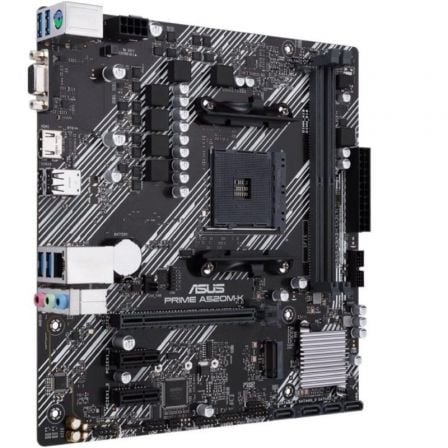

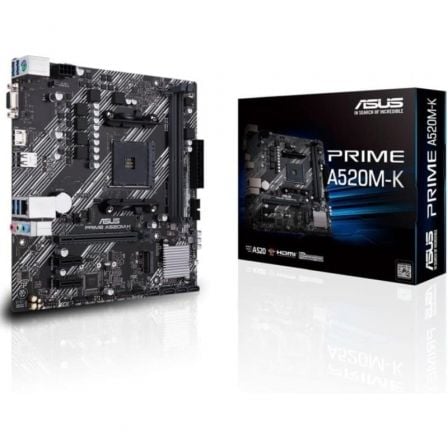

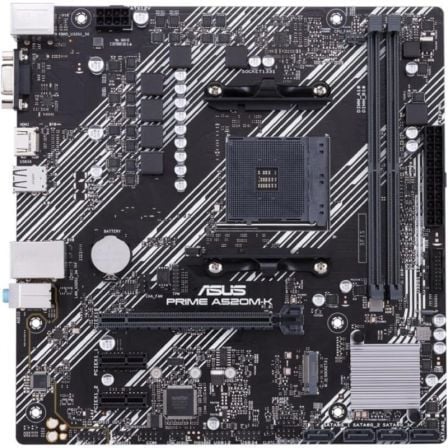

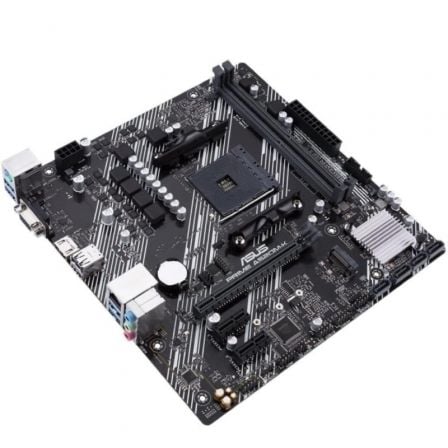

Placa Base micro ATX AMD A520 (Ryzen AM4) con soporte M.2, Ethernet de 1 Gb, HDMI / D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Tipo A

'
• Socket AMD AM4: Listo para procesadores de escritorio Ryzen™ 5000 Series / 4000 G-Series / 3000 Series.
'
• Enfriamiento completo: Disipador de Chipset y Fan Xpert.
'
• Conectividad ultrarrápida: Compatibilidad con M.2, Ethernet de 1 Gb, USB 3.2 Gen 2 tipo A.
'
• 5X Protection III: Múltiples protecciones de hardware para la protección integral del sistema.
'

'
• Model
'
• PRIME A520M-K
'
• CPU
'
• AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors *
'
• * Refer to www.asus.com for CPU support list.
'
• Chipset
'
• AMD A520
'
• Memoria
'
• 2 x DIMM, Max. 64GB, DDR4 '4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133' MHz Un-buffered Memory *
'
• Dual Channel Memory Architecture
'
• ECC Memory (ECC mode) support varies by CPU.
'
• * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
'
• Gráficos
'
• 1  x D-Sub
'
• 1  x HDMI 2.1(4K@60HZ)
'
• Slots de Expansión
'
• AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
'
• 1 x PCIe 3.0 x16 (x16 mode)
'
• AMD A520 Chipset
'
• 2 x PCIe 3.0 x1
'
• Almacenamiento
'
• Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
'
• AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors :
'
• 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
'
• AMD A520 Chipset :
'
• 4 x SATA 6Gb/s port(s),
'
• Support Raid 0, 1, 10
'
• LAN
'
• Realtek RTL8111H 1Gb Ethernet
'
• ASUS LANGuard
'
• Audio
'
• Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *
'
• - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
'
• Audio Feature :
'
• - Audio Shielding
'
• - Dedicated audio PCB layers
'
• * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
'
• Puertos USB
'
• Rear USB Port ( Total 6  )
'
• 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
'
• 2 x USB 2.0 port(s)(2 x Type-A)
'
• Front USB Port ( Total 6  )
'
• 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
'
• 4 x USB 2.0 port(s)(4 x Type-A)
'
• Software Features
'
• ASUS Exclusive Software
'
• Armoury Crate
'
• AI Suite 3
'
• - Performance and Power Saving Utility
'
• TurboV EVO
'
• EPU
'
• Digi+ VRM
'
• Fan Xpert
'
• - EZ update
'
• ASUS CPU-Z
'
• AI Charger
'
• DAEMON Tools
'
• Norton Anti-virus software (Free Trial for 60 days)
'
• WinRAR
'
• UEFI BIOS
'
• ASUS EZ DIY
'
• - ASUS CrashFree BIOS 3
'
• - ASUS EZ Flash 3
'
• - ASUS UEFI BIOS EZ Mode
'
• ASUS Special Features
'
• ASUS 5X PROTECTION III
'
• - ASUS DIGI+ VRM
'
• - ASUS LANGuard
'
• - ASUS Overvoltage Protection
'
• - ASUS SafeSlot Core
'
• - ASUS Stainless-Steel Back I/O
'
• ASUS Q-Design
'
• - ASUS Q-DIMM
'
• - ASUS Q-Slot
'
• ASUS Thermal Solution
'
• - Aluminum heatsink design
'
• Puertos I/O Traseros
'
• 1 x PS/2 keyboard/mouse combo port(s)
'
• 1 x D-Sub
'
• 1 x HDMI
'
• 1 x LAN (RJ45) port(s)
'
• 4 x USB 3.2 Gen 1 (blue) Type-A
'
• 2 x USB 2.0
'
• 3 x Audio jack(s)
'
• Internal I/O
'
• 1 x CPU Fan connector(s)
'
• 1 x Chassis Fan connector(s)
'
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
'
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
'
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
'
• 1 x SPI TPM header
'
• 4 x SATA 6Gb/s connector(s)
'
• 1 x S/PDIF out header(s)
'
• 1 x 24-pin EATX Power connector(s)
'
• 1 x 8-pin EATX 12V Power connectors
'
• 1 x Front panel audio connector(s) (AAFP)
'
• 1 x Clear CMOS jumper(s)
'
• 1 x System panel connector
'
• 1 x COM port header
'
• 1 x Speaker connector
'
• Accessorios
'
• User´s manual
'
• I/O Shield
'
• 2 x SATA 6Gb/s cable(s)
'
• 1 x Supporting DVD
'
• 1 x M.2 SSD screw package(s)
'
• BIOS
'
• 256 Mb Flash ROM, UEFI AMI BIOS
'
• Capacidad de gestión
'
• WOL by PME, PXE
'
• Sistema Operativo
'
• Windows® 10 64-bit
'
• Factor de forma
'
• mATX Form Factor
'
• 8.9  inch x 8.7  inch ( 22.6  cm x 22.1  cm )
